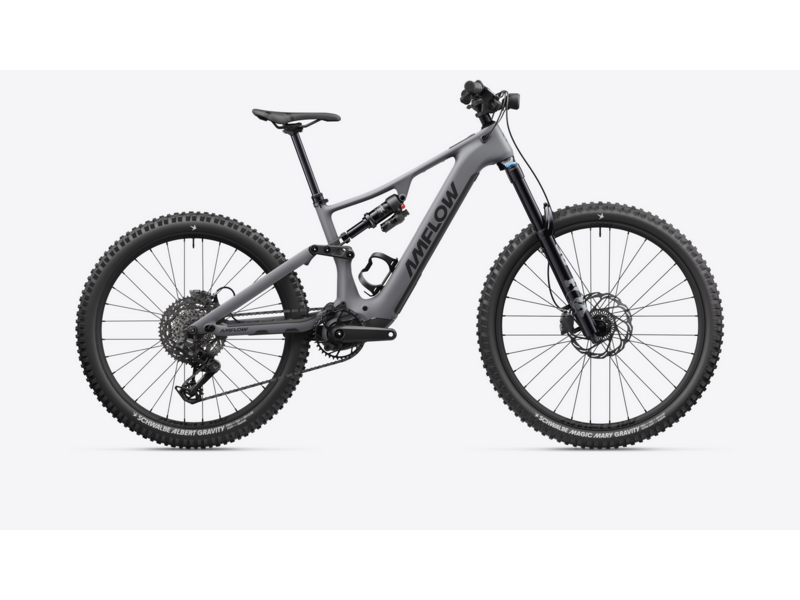

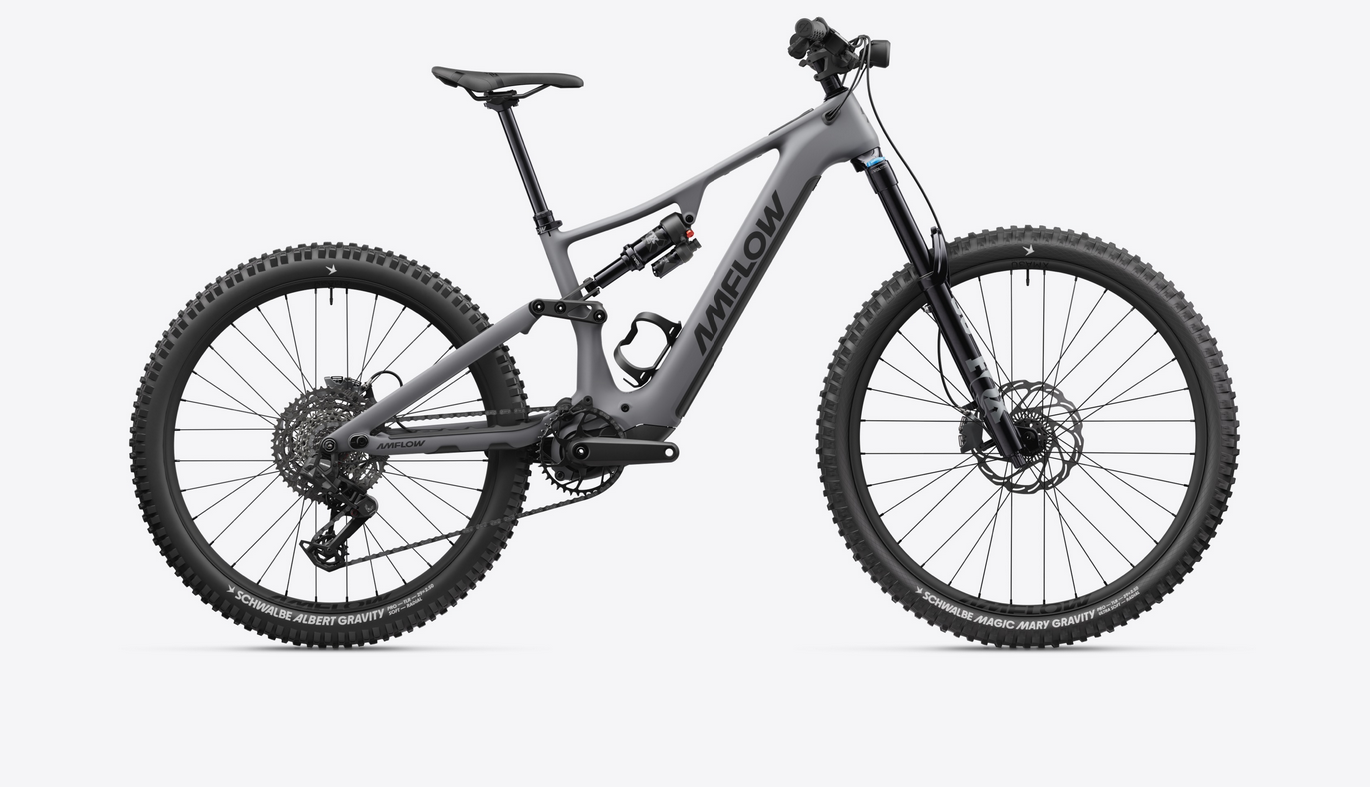

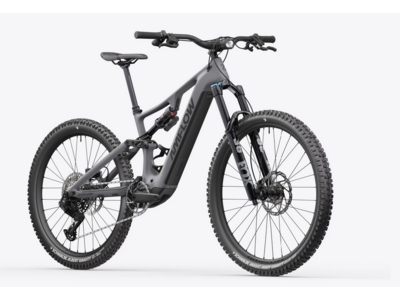

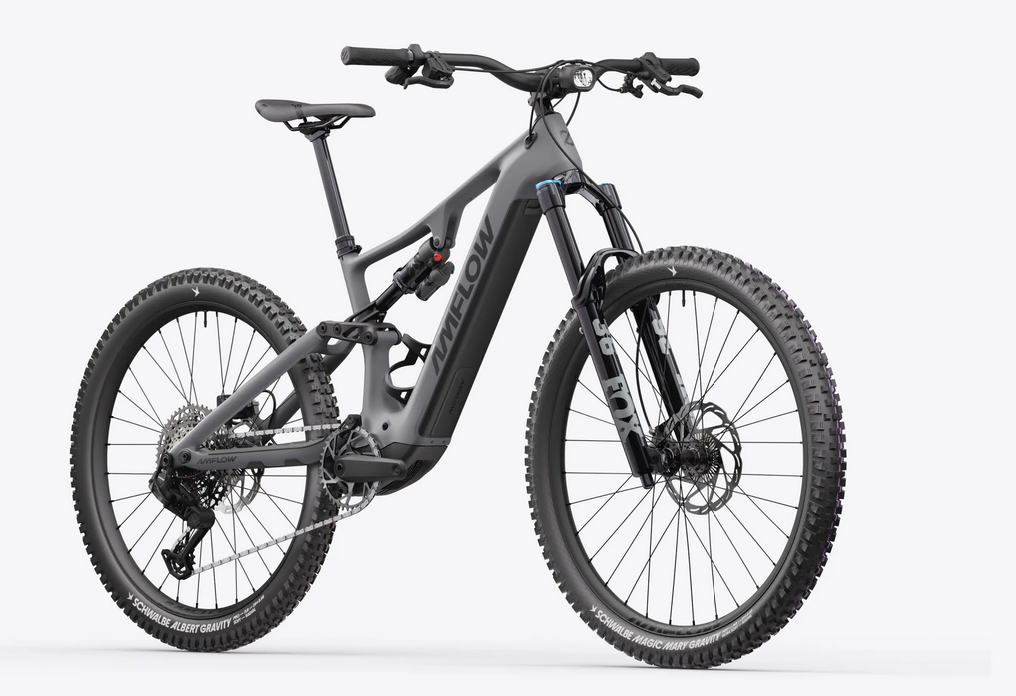

AM Flow Amflow PR Carbon Pro 800wh - Basalt Grey

Please call the store on 01889 575170 for enquiries and to add your name to the waiting list

Amflow PR Carbon Pro New Model

E-Bike System
Avinox M2S Drive Unit: Nominal 130N·m, peak 150N·m
Avinox Screen: 2-inch OLED Control Display
Avinox Removable Battery: 800Wh
Avinox Wireless Controllers: Right and left sides
Avinox Fast Charger: 12A/508W

Rear Shock
FOX Float X Performance (MY 2027)
2-position lever, custom tune, LSR adjustment, 210? - 55mm, air shock

Fork
FOX 36 Performance (MY 2027)
160mm travel, GRIP damper, Sweep/LSR adjustment, 15? - 110mm, 44mm offset

Drivetrain
Rear Derailleur: SRAM S1000 Eagle Transmission Derailleur
Chainring: SRAM Eagle Transmission DM Chainring 38T for Avinox
Shift Levers: SRAM AXS Pod Controller
Cassette: SRAM XS-1270 Eagle Transmission Cassette 10-52T
Chain: SRAM Eagle 70 Transmission Flattop Chain
Power Supply: Avinox M2 Series Electronic Rear Derailleur Power Cable (SRAM AXS Extension Cord)
Crankset: Avinox SL Crank (M/L: 155mm; XL/XXL: 160mm)

Brakes
Magura Gustav Pro Hydraulic Disc Brake, 4-piston calipers
Magura Sensor Rotor (203mm, 2.5mm)

Wheels
Amflow XMA-30 Mullet Version
Front Rim: Alloy, 29- ?, 30mm inner width, 32H, tubeless ready
Rear Rim: Alloy, 27.5- ?, 30mm inner width, 32H, tubeless ready
Spokes: SAPIM E-Light
Front Hub: Alloy, 2 sealed bearings, 15? - 110mm thru-axle, 32H, 6-bolt
Rear Hub: Alloy, 4 sealed bearings, 12? - 148mm thru-axle, 32H, 6-bolt, 4 pawls 36T, HG

Tires
Front: Schwalbe Magic Mary Radial, 29? - 2.5, Gravity Pro, Ultra Soft, tubeless ready
Rear: Schwalbe Albert, Radial, 27.5? - 2.5, Gravity Pro, Addix Soft, tubeless ready

Handlebar
Amflow Enduro Alloy Handlebar
40mm Rise, 800mm Width, 35mm Diameter
5-degree upsweep, 9-degree backsweep

Grips
Amflow Enduro Grip 2 Lock-on Grips

Stem
Amflow Mountain Bike Split Stem
Length: 35mm
Clamping Diameter: 35mm

Saddle
Amflow Mountain Saddle

Dropper Post
Amflow Dropper Post Shim (adjustable travel: 0/5/10/15/20/25mm)
M Frame: 190mm
L/XL Frame: 210mm
XXL Frame: 230mm

Accessories
Avinox Front Light
Amflow Bottle Cage
Three Geometry Adjustment Systems (0.5°/1° Headset Cups, Chainstay Flip-Chip)
Removable Battery Keys ? - 2
5/10mm Dropper Post Travel Reducing Spacer
Quick Start Guide
Rear Light
Torque Wrench
Clear Frame Protection Film
Shock Pump
